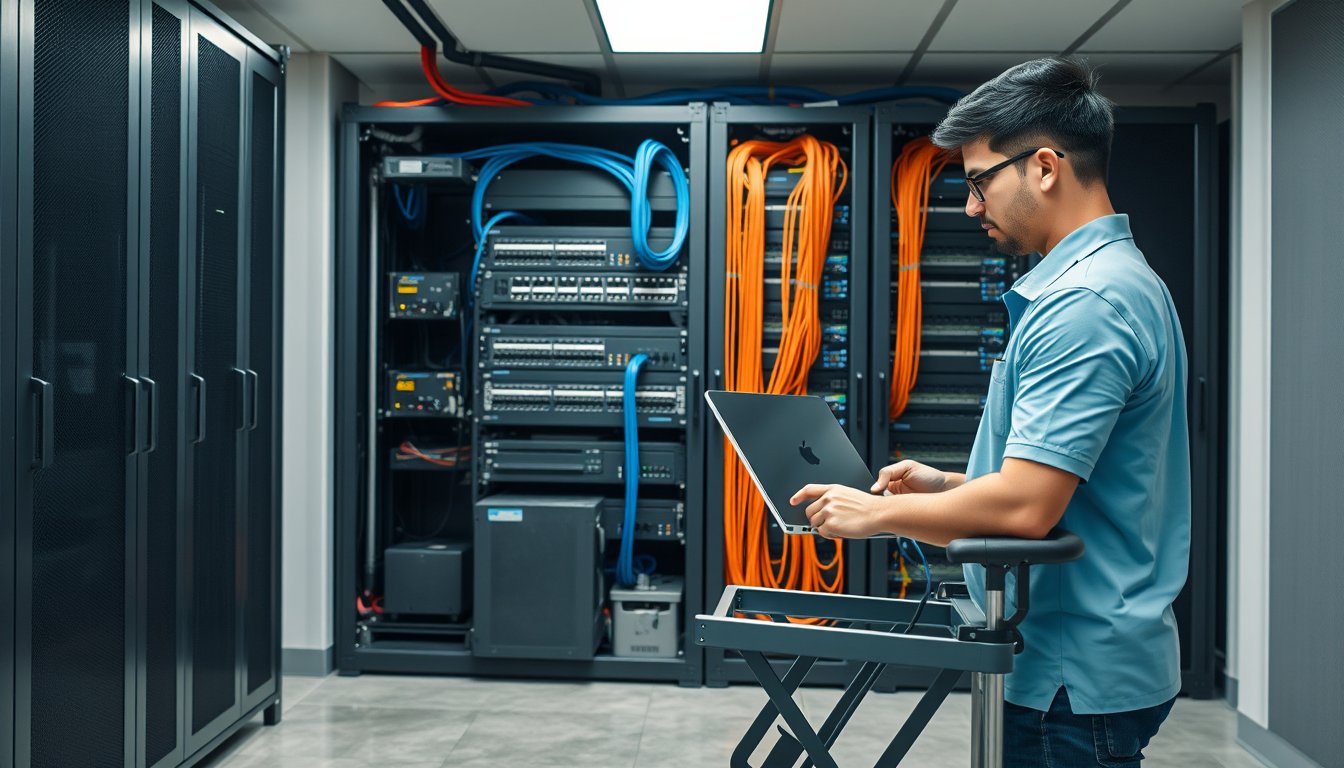

Network Rack Installation in Bangalore: A Practical Buyer's Guide

Why the rack is the last thing anyone plans properly

A 60-person logistics firm in Peenya signed off on a new office fit-out in March 2025. Electrical contractor quoted ₹1.1 lakh for wiring, HVAC was locked, furniture was ordered. The rack arrived three weeks before handover — a 42U wall-mount someone had bought online because it looked right. It did not fit. The wall was a 4-inch AAC block partition. The rack was rated for 200kg loaded. It went back. The replacement floor-standing unit landed after the furniture, which meant the cabling contractor ran everything twice. Total unplanned cost: ₹2.4 lakh on top of the original budget, plus eleven days of lost productivity in a temporary setup that never quite worked.

That story is not unusual. Rack installation in Bangalore tends to sit at the end of the project plan, sandwiched between the cabling quote and the desk delivery. By the time anyone thinks about it seriously, the wall is up, the false ceiling is sealed, and the electrician has already run four unscheduled 16A sockets to a corner of the room "for the server".

We have done this work since 2001 out of Bangalore — over 1,200 organisations across the city and the rest of India — and the same failure modes repeat: undersized UPS, no dedicated earth pit, PDUs plugged into a wall socket shared with the water cooler, and cables so tight you can play them like a harp. This guide covers what properly sized rack installation actually looks like in 2026, what it costs, and where the money goes.

If you would rather skip the reading and get a scoped quote, our network solutions practice handles rack design, supply, earthing, and commissioning as one package.

Rack sizing: the numbers that actually matter

How many U do you really need?

People undercount, always. The instinct is to buy a 12U wall rack for a 40-person office. Then a year later they add a second switch, an NVR for the CCTV, a NAS, and a small UPS, and there is no room.

Here is a load list for a typical 50-user Bangalore office in 2026:

A 25U requirement almost always goes into a 32U or 42U rack. The 32U is the practical sweet spot for a single-rack SME deployment and a 42U is what you buy when you know servers are coming (a small Hyper-V host pair, or a Dell PowerEdge R660, occupies 1U to 2U each but wants airflow and cable slack).

Wall-mounted racks — typically 9U to 18U — make sense in branch offices with under 20 users, no servers, and a floor plan that does not allow a lockable comms room. They do not make sense for a 60-user floor. Distribute one in each IDF if your campus is wired that way.

Rack depth is where people get caught out

Standard racks come in 600mm, 800mm, 1000mm, and 1200mm depths. A 600mm rack looks fine in a product photo but will not take most rack-mount servers (Dell R660 needs 750mm+ of interior rail depth) or a rack-mount UPS with rear cable bend radius. For SME use:

• 600mm depth, 600mm width: patch panels, switches, small UPS, no servers. Fine for branch comms closets.
• 800mm depth, 600mm width: the standard SME compromise. Fits a switch stack, most racks PDUs, and a 1U server with a bit of squeeze.
• 1000mm depth, 600mm width: what you actually want if any server, deep firewall, or rack UPS is going in. Rear clearance becomes workable.
• 1000mm+ depth, 800mm width: full-width, for large switch stacks and structured cabling on both sides. Rarely needed below 150 users.

Width is a separate decision. 600mm wide racks accommodate 19-inch equipment fine, but side clearance is 50mm each side — enough for vertical PDUs but not enough to walk around. 800mm wide gives you proper vertical zero-U PDU mounting and better rear-side cable segregation. The extra cost is around ₹6,000–₹9,000 on a 42U rack (2026 pricing) and is worth it every time.

Weight rating is not marketing

A fully loaded 42U rack with two servers, a 6kVA UPS, and a full patch stack can pass 350kg. Most “budget” racks sold online at ₹18,000–₹28,000 are rated at 250kg static while stationary, not 250kg moving. If you ever need to shift it, the castors become the weak point. Ask for the dynamic load rating and confirm the frame steel gauge (1.5mm or better for any real load).

Layout: where equipment goes and why

Layout is where good installers earn their money and where lazy ones cut corners. The conventions that matter:

• Patch panels at the top, in the U-space just below the top cable entry. Cables come from above (or from a raised-floor tray below, if you have one) and drop into the panels with minimal horizontal run inside the rack.
• Switches directly below their patch panels. Switch port 1 should be roughly aligned with patch port 1. This one rule will save you more minutes over the life of the rack than any other.
• Firewall below the switches, or above — either works, but keep it close to the WAN ingress port on the wall.
• UPS at or near the bottom. It is the heaviest single item. Bottom mounting also keeps the runs of PDU cable short.
• Servers and NAS above the UPS, lower-half of the rack if the load is significant (COG matters for tipping resistance).
• Airflow section: if you have hot-aisle/cold-aisle separation, the switch stack and patch panels should face the cold aisle. In single-rack SME setups without containment, leave a 1U gap or add a vented blanking panel every 2U–3U to break up recirculation.

What not to do: leave a 6U gap between the firewall and the switches "for future equipment". Future equipment rarely arrives in exactly that U slot, and the gap becomes a dust trap and an airflow short-circuit. Use blanking panels instead and install equipment where it belongs.

Cable management: the difference between a rack and a rat's nest

You can tell a bad installation from the front of the rack. You can tell a great one from the back.

Structured cabling at the rack

• Patch cords should be the exact length, not the convenient length. A 1.5m Cat6A patch between adjacent switch and panel sags and tangles. A 0.3m patch (₹120–₹180 each, 2026) is correct. Buy them in the right lengths and label them.
• No cable ties. Use hook-and-loop (Velcro) straps. Nylon zip ties over-tighten, deform the cable jacket, and alter the pair geometry inside a Cat6 cable, which shows up as NEXT failures on your certification test.
• Horizontal cable management bar above every patch panel and below every switch. This is non-negotiable. ₹1,200–₹2,400 per bar depending on brand.
• Vertical cable management on both sides of the rack for inter-rack runs and PDU cabling. Zero-U verticals at the rear.
• Label everything at both ends. Use a proper label printer (Brother PT-E550W or similar). A sharpie on a cable jacket looks fine for a month and illegible for a decade.

The rear side, which nobody photographs

• Power cables go down one side, data cables down the other. Never cross them where avoidable. AC power cables can induce noise into unshielded data runs when routed parallel for long distances.
• Service loops are for rack-mount equipment, not wall-to-rack. A 300mm service loop on each side of a server or switch lets you slide it out on rails without unplugging. A wall-to-rack slack loop just tangles.
• Rear cable entry: top entry with a brush plate and a vertical cable manager. Bottom entry is fine if the raised floor or tray is genuinely below the rack. Running cables through a hole cut in the false ceiling and dangling into the rack is not acceptable.

Bend radius and the monsoon problem

Cat6 unshielded twisted pair wants a bend radius of at least 4x the cable diameter — roughly 25mm for standard Cat6. Fibre is stricter: 30mm minimum for OM4, tighter for bend-insensitive. Installers in a hurry will fold cables around the frame corner. That shows up as intermittent CRC errors a year later, in the middle of July when monsoon humidity has already pushed connector impedance marginal.

Which brings up Bangalore specifics. The city's monsoon between June and September puts sustained humidity into comms rooms, particularly in older buildings with stone or concrete walls and no mechanical cooling. Condensation on cold surfaces is real, and cheap patch cords with poor plating corrode at the contacts faster than you would expect. Two rules: keep comms rooms air-conditioned 24x7 (even a 1.5-tonne split AC at 24°C with low fan), and use patch cords with 50µ gold plating from a genuine brand — Commscope, Panduit, or D-Link (Cat6) at roughly ₹140–₹260 per 1m cord. The no-name ₹40 cords from the grey market are the number one reason for call-outs that trace back to physical layer faults.

PDU and UPS sizing: the arithmetic most people skip

Work out the real load

Add up nameplate amperage of everything in the rack, then derate. As a rule, size the PDU and the UPS at 1.25x to 1.4x of expected continuous load, and do not plan to run a UPS at more than 80% of its VA rating continuously.

Worked example — 50-user Bangalore office:

That feels light. Add a 5-year growth horizon — a second server, a second switch stack for a new floor, a few access points racked at the IDF — and you are at 1.6kVA. That is why a 3kVA online UPS is the standard spec for an SME rack even when the current measured load is under 700W. Undersizing to 1kVA because "the current load is small" locks you into a replacement inside two years.

Online vs line-interactive

Line-interactive (APC Smart-UPS SMT or SRT 1500VA, ₹34,000–₹48,000 in 2026) is fine for a small branch rack with no servers, a switch stack, and a router. Online double-conversion (APC SRT 3000VA or Eaton 9PX, ₹95,000–₹1.55 lakh in 2026) is the correct choice the moment a server, a storage array, or a PBX is present. Bangalore has reasonably stable power, but the switching transients during grid changes are hard on server PSUs and line-interactive units do not fully isolate them.

Do not confuse a home inverter with a rack UPS. They are not the same product and do not have the changeover time or waveform quality that IT equipment needs.

PDU choice

For a 50-user office, we spec one metered horizontal PDU at the rear and one switched PDU fed from a second utility circuit (from a different phase on the building supply, ideally). That gives live remote reboot capability (worth its weight when a switch needs power cycling at 9pm) and feeds part of the load from a path that survives a single MCB trip.

A common mistake: plugging the UPS into one wall socket and the PDU into another, without checking they are on the same phase. In Indian 3-phase distribution this happens constantly and it defeats the point of the second feed.

Earthing: the silent killer

A rack installation in Bangalore that skips earthing will work fine for six months. Then it will not.

What goes wrong

We had a client near Electronics City — 90-user IT services firm, three small servers, VoIP PBX, the works. In August 2023 they started losing switches. One every six to eight weeks: a burnt access switch, later a failed PoE port cluster, eventually the PBX control board. Each replacement cost ₹35,000–₹60,000 and the downtime added up. Everyone assumed surge. We measured. The building had a single earth pit sized for the old single-phase supply; when the fit-out contractor added a second floor of cubicles and heavy HVAC, the pit was shared with the electrical system's neutral bonding. Earth resistance measured 12.4 ohms on a Megger loop test. CBEMA and IEEE recommend under 5 ohms for IT equipment; many best-practice guides say under 1 ohm. The differential between the electrical earth and the DATA earth was the problem — several volts of RF-shift between the two "earth" references, and it killed things on the mains transients.

Fix: a dedicated 3-metre copper-bonded earth pit for the IT earth, separate from the utility earth, chemically earthed, tested monthly for the first six months. Cost: ₹42,000 (2026 pricing, similar spec would be ₹46,000–₹55,000 now). After that, zero equipment losses over the following 20 months.

What good earthing looks like

• Separate IT earth pit, distinct from the building utility earth and the lightning protection earth. Chemical earthing with copper-bonded rods is the norm — the older salt-and-charcoal pits degrade within 3–5 years.
• Earth busbar inside the comms room, with clearly labelled bare-copper conductors to each rack.
• Star configuration, not daisy-chain. Every rack earth runs back to the busbar. Chain earthing means the last rack sees the worst earth.
• Rack earth strap. The rack frame itself gets a 6mm² green-yellow strap to the busbar.
• No shared earth with the HVAC plant. The HVAC compressor surges are the single most damaging thing for a shared earth system.
• Test quarterly. Earth resistance drifts with soil moisture, and Bangalore's dry February is when resistance climbs. A ₹42,000 pit that has never been tested is a guess, not a safety feature.

Bonding to the ground bar has one more benefit

A proper IT earth also helps with the omnipresent static problem in Bangalore offices with vinyl or epoxy flooring. Nobody likes getting shocked when they touch the rack door. Capacitive discharge across the door hinge into the frame is not a health hazard, but at scale it can cause strange behaviour on the console cable.

Cooling: the SME rack without a CRAC

Nobody below 150 users installs a CRAC (computer room air conditioner). You work with a split AC and airflow discipline.

Heat load calculation is simple

Nearly 100% of the power drawn by IT equipment becomes heat. So a 700W-running rack (our earlier sample) puts 700W — about 2,400 BTU/hr — into the room. Add 20% for the UPS conversion losses if the UPS is in-room. Round to about 850W, or roughly 2,900 BTU/hr.

A 1.5-tonne split AC gives around 18,000 BTU/hr of cooling — ten times what a single SME rack needs. The calculation is not the problem. The problem is that heat gets trapped.

What actually goes wrong in Bangalore comms rooms

• Recirculation. Rack intake pulls air from the rack exhaust because there is no separation and no blanking panels. Intake air climbs from 24°C to 38°C. That is what kills drives and, eventually, switches.
• Placement under the AC. Looks like the coolest spot. Actually pulls the AC's short-cycled cold air and dumps it back across the rack in under a metre. Cooler is not better if the airflow path is bad.
• Door closed with no return air. A comms room with the AC evaporator inside and the door sealed has nowhere for hot air to go. Small undercuts at the door base (20mm) matter.
• Cable spaghetti blocking the fans. Vertical cable bundles draped across rear fans on the equipment is a very common cause of fan failure alerts.

Practical rules

• Front-door perforation of at least 63%, back door of 80%, both mesh not glass.
• 1U blanking panel for every unused U in the active section.
• Rear clearance of at least 750mm for cable work and airflow.
• Front clearance of at least 900mm for the door swing and equipment pullout.
• Temperature probe at rack intake and exhaust — a ₹4,500 SNMP sensor on the UPS or a cheap environmental sensor is enough. Alert on intake above 27°C.
• In humid months, watch for condensation on cold water pipes above the rack. Redirect or insulate.

Physical security: locks, cages, and the man with the mop

The rack is a physical asset. Treat it like one.

Access control basics

• Lockable front and rear doors. Abloy or equivalent cam lock. The key goes to IT, not to facilities.
• A lockable comms room. If there is not one, the rack can be shrouded and locked. It is not the same, but it prevents the worst of the visitor foot traffic.
• Keys are logged. Sounds bureaucratic. It is not. When something goes missing, you want a list.
• Rack-mounted power strips are not the issue; the rack power feed is. Ideally, the comms room sits on the essential/backup circuit from the building, not the general lighting circuit.

CCTV in the comms room

A ₹6,500–₹9,500 IP camera (Hikvision DS-2CD2143G2-IU or CP Plus 4MP equivalent) pointed at the rack front door is cheap insurance. Record to the same NVR as the rest of the office. Six to twelve weeks of retention. This has solved exactly the kind of problem you think it solves: two years ago we identified a night-shift cleaning contractor who had repeatedly unplugged a switch to charge his phone, and we only figured it out from CCTV.

Not just locks — environment

A ₹400–₹900 leak sensor under the rack, wired to a dry contact on the UPS or the NVR, will catch the drip from a ducted split AC drain pan. That event, when it happens, costs far more than the sensor.

What installation actually costs in Bangalore, 2026

Prices have moved. Steel prices, freight, and labour are all up. Here is what we are seeing across active deployments.

Labour, commissioning, and a certification test on the installed cabling adds another ₹28,000–₹65,000 depending on rack count and cabling volume.

Turnkey pricing per site

• Small branch (single 12U wall rack, switch + router + small UPS, no server): ₹65,000–₹1.05 lakh turnkey, 2026 pricing.
• SME office (single 32U or 42U, full stack, earthing work, AC coordination): ₹2.85 lakh–₹4.60 lakh turnkey. Our own quotes lean toward the middle unless the site has a builder-installed rack already.
• Multi-floor / campus (three to six IDF racks, MDF central rack, structured backbone): ₹9 lakh–₹22 lakh, scope-dependent. This is genuinely hard to quote without a site visit.

GST at 18% applies to the supply and installation as a composite service. If the rack and equipment are supplied separately, hardware attracts 18% (most IT equipment is 18% now, some categories like UPS still land at 18% but with different HSN). Input credit for the customer is usually recoverable on all of it — talk to your accountant, not to us.

Where the money goes

In a typical ₹3.6 lakh SME rack install we ran last quarter, the split was: hardware 58%, installation labour 18%, earthing 12%, cabling and patch cords 8%, testing and commissioning 4%. If you get a quote that is hardware-heavy and labour-light, they are not doing the earthing and the testing.

Timelines, ISP coordination, and Bangalore-specific realities

The install itself

A 32U or 42U rack build, given the room is ready:

• Day 1: rack positioning, anchoring, earthing strap run, PDU mounting
• Day 2: patch panel and switch mounting, cable routing, patch cords
• Day 3: UPS commissioning, load testing, environmental sensor setup, labelling
• Day 4: handover, documentation, label schedules to the client

Four working days for a single rack. Twenty working days if earthing work is also required. Do not believe a two-day quote — the rack will go up, but the earthing and testing will not happen.

Don't schedule ahead of your ISP

This catches at least a third of our clients. In Bangalore, lead time for a new Airtel or ACT enterprise circuit at an office location is often 12–20 working days from completed paperwork, and the BSNL legacy ones can be worse. If you install the rack and the WAN is not there, you cannot commission the firewall, you cannot demonstrate the rack to yourself, and everything sits. Sequence the ISP order the moment you have a site address and a signed lease. Then plan the rack installation to lag it by a week.

Tata TeleBusiness and Jio Business have both improved lead times in Bangalore over the last two years to roughly 10–15 working days for a new fibre, but the variability between individual buildings is high. Commercial parks on Outer Ring Road are usually faster than standalone buildings off Hosur Road. None of this is something you can control from the rack side, which is why it sits on the critical path.

Building rules every Bangalore tenant should check

• Generator backing and lift access. A 42U rack arrives on a pallet. If the lift will not take it and the building has no goods lift, you are carrying it up stairs. Sometimes the rack needs to be split into pieces and reassembled, which affects the anchoring method.
• Drilling into the floor or wall. RCC slab anchors are fine. Post-tensioned slabs are not — they need surface-mount ballast or a different anchor system. Ask the building manager, not the fit-out contractor, because the fit-out contractor does not always know.
• Fire and false ceiling. Running cables above a false ceiling is normal, but if the building has an addressable fire system with ceiling-mounted sensors, a contractor needs to know not to disturb them. Hanging a cable tray through a sprinkler zone without permission is how you get cited.
• Society/RWA approvals for smaller buildings. Yes, a Pune or Bangalore office park will still want a form.

The failover test nobody does

After commissioning, run the rack through a controlled failure: switch off the primary utility feed at the comms room MCB, confirm the UPS carries the load for at least 15 minutes at real load, and confirm the online UPS switches cleanly back when the grid returns. We do this on every install. At least half the clients we take over from other vendors have never seen this test done at their site. It takes an hour and it is the difference between a UPS you have and a UPS you know works.

When not to buy a rack (or when SynergyScape is not the right fit)

Honest trade-offs:

• Under 8 users, one ISP, no server, no CCTV. Skip the rack. A wall-mounted 6U bracket with a switch and a small line-interactive UPS, plus a wall cabinet for the modem and firewall, is cheaper, faster, and adequate. Roughly ₹18,000–₹28,000 all-in.
• Coworking or shared office. You probably cannot install a dedicated rack — the lease terms often prohibit floor anchoring. Work with a lockable 12U cabinet wall-mounted inside your office, or accept the shared facility's wiring and use an on-desk switch for local ports.
• You already have a working rack, and it is full. Do not add a second rack next to the first. The horizontal cabling will not survive the stretch and you will spend more on remediation than on a proper 42U replacement. Sell the old one on OLX for what you can get and buy once.
• You want us to install a rack you bought online. We will, but we will not warrant the rack or the physical layer. This is not a money thing — the rack quality varies so much in the grey market that we cannot stand behind a unit we did not specify. Roughly 15% of the racks we see arrive with cross-threaded cage nuts, bent frame members, or missing mounting hardware. If you bought it yourself, that is the risk you are accepting.

Where we are a good fit: any Bangalore SME with 20–500 users, a distinct IT closet or comms room available, and a plan to standardise the physical layer once and run it for 8–10 years.

A next action that actually moves things

If you are planning a new office or a refresh, do this in the next two weeks:

1. Measure the comms room. Width, depth, ceiling height, distance from the nearest RCC wall or slab for anchoring, and the route for the incoming ISP fibre.
2. Count your current and 3-year equipment in U. Firewall, switches, patch panels, NAS, servers, UPS. Add 30%.
3. Get a Megger earth resistance reading on the existing building earth if you are in an older property. If it is over 5 ohms or you cannot find the pit, budget for a dedicated IT earth.
4. Get three quotes that separately price: hardware, labour, earthing, cabling, testing. If a quote bundles everything into one lump with no breakdown, drop it.

If you want a second opinion or a scoped quote covering all of the above, our team does this day in and day out across Bangalore. Chat through your requirements at our contact page or browse the network solutions scope at our network solutions practice. A one-hour site assessment is enough to firm up rack size, UPS rating, and earth requirements — and it is much cheaper than discovering them after the false ceiling is up.

FAQ

How much does network rack installation cost in Bangalore?

For a single SME rack (32U or 42U) including hardware, labour, earthing work, and commissioning, expect ₹2.85 lakh–₹4.60 lakh turnkey in 2026. A small branch 12U wall rack with basic switch and UPS runs ₹65,000–₹1.05 lakh. Multi-floor deployments with three to six IDF racks typically land between ₹9 lakh and ₹22 lakh depending on scope.

Do I need a separate earth pit for the IT rack?

Yes, if the building's existing earth is shared with HVAC or utility power, which it almost always is in commercial buildings. A dedicated copper-bonded chemical earth pit for IT equipment costs ₹42,000–₹58,000 in 2026 and pays back the first time it prevents a switch or PBX board failure. Measured earth resistance should be under 5 ohms; under 1 ohm is better.

How long does a rack installation take in Bangalore?

Four working days for a single 42U rack build in a ready room. Twenty working days if earthing work is required. Add two to three weeks of lead time if the ISP circuit is not yet provisioned — Airtel and ACT enterprise fibre typically take 12–20 working days from completed paperwork in Bangalore.

Can I install a 42U rack in a small office with a 4-inch block wall?

No. Block partition walls will not carry the loaded weight (300kg+) of a 42U rack. Wall-mounted racks are limited to 9U–18U and should only go on RCC or structurally rated masonry. If there is no RCC wall available, use a floor-standing rack with floor anchors and confirm the slab is not post-tensioned.

What size UPS do I need for a 50-user office rack?

A 3kVA online double-conversion UPS is the standard spec for a 50-user SME rack with a switch stack, firewall, NAS, and one small server. Current running load typically measures 600W–900W, but the 3kVA sizing gives you power factor headroom and three to five years of growth without replacement. Do not size to the current measured load alone.

Do I need to tell the building about the rack installation?

Yes. Check three things before you order equipment: whether the goods lift can take the palletised rack, whether the floor slab is post-tensioned (a common issue in newer Bangalore commercial buildings), and whether there is an existing fire system with ceiling sensors that your cabling work might disturb. Get written approval from the building manager, not just the fit-out contractor.
